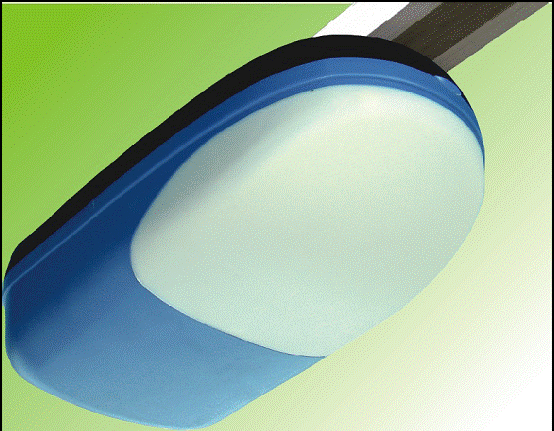

Mechanical Garage Door Opener
Functions:
1) Mechanical limit switch for opening and closing the door
2) In power failure, the closed door is auto-locked
3) Auto-closing the door
4) The door can be opened by pulling down the rope fixed in the guide track if power failure
5) Interface for photocell and backup batter are fixed in the main unit for you to choose
Technical Specifications
|
|
G800 |
G1000 |
G1200 |
|
Power supply |
220VAC 50Hz |
220VAC 50Hz |
220VAC 50Hz |
|
Motor voltage |
24VDC |
24VDC |
24VDC |
|
Lighting bulb |
10W/24V |
10W/24V |
40W/220V |
|
Consumption in stand-by |
＋10W |
＋10W |
＋10W |
|
Protection class |
IP20 |
IP20 |
IP20 |
|
Ambient temperature |
-30-60C |
-30-60C |
-30-60C |
|
Operation speed |
12cm/s |
12cm/s |
12cm/s |
|
Radio frequency |
433.92MHz |
433.92MHz |
433.92MHz |
|
Motor output torque |
8Nm |
10Nm |
12Nm |
|
Max lift height |
2.2m |
3.2m |
4m |
|
Max square meter(square meters) |
8 |
12 |
15 |
|
Overall dimension( cm) |
43X21X26 |
43X21.5X26 |
43X21.5X26 |
|
Gross weight |
4.83KG |
5.28KG |
5.23KG |
Mechanical travel limit: accurate positioning and stable traveling
