XJ011 single phase
DIN-rail watt-hour meter |
| |
| |
XJ011 single
phase DIN-rail watt-hour meter is a kind of DIN
rail mounting electronic watt-hour meter, it adopts
large
scale integrate circuit, uses advanced technique
of digital and SMT techniques, etc.
The meters
comply with relevant requirements of class 1 and class 2 single phase
energy meter stipulated in National standard
GB/T17215-2002 and international standard
IEC61036-2000. it can accurately measure
50Hz or 60Hz active energy consumption for single phase AC electricity
power net, it can display total energy consumption by
step type cyclometer or LCD display. It
has following features: Good reliability, small
volume, light weight, specious nice appearance,
convenient installation, etc.
Functions and
features:
*
35mm
standard DIN rail installation, complying with
standard DIN EN5002.
* May
select 5+1 cyclometer by step type or 7
digits LCD display.
* May select infrared
communication interface and RS485
communication interface.
* Impulse output,
complying with standard
DIN43864.
* May select
normal or simple connection. |
| |
| Technical parameters
|
| |
|
Type
|
Accuracy |
Rated
voltage(V) |
Rated
current(A) |
Starting
Current |
Insulation
Performance |
|
XJ011 |
Class 1 |
220V;230V |
3(15),5(30)
10(50),20(100)
5(40),5(100)
|
0.4%lb |
AC voltage 2KV for 1 minute
impulse voltage 6kV |
|
| |

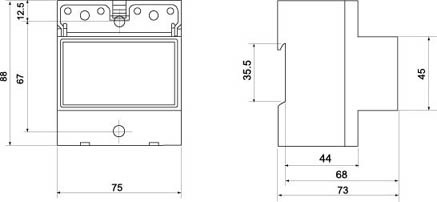

| Outline and mounting
dimension |
| |
|
|
| | | |
|
| |
| |
|
|
| | |
|
|
