DTSY566-S01
|
 |
|
DTSY566-S02
|
|
|
|
|
| | |
 |
Three phase
prepayment watt-hour meter |
| |
| |
DTSY566
three phase prepayment electronic watt-hour meter adopts
LSI, latest micro-electronic technology &
SMT technique, with advanced processing and
simple structure and modern special IC chip to
raise the meter’s dynamic working scope.
Long-life and high-reliability components are
adopted to ensure the long-term operation
stability of the energy meter. It used for
measuring rated frequency 50Hz/60Hz active
energy with high accuracy and little power
loss, meanwhile, realizes the functions of
prepayment management and load control that
pay for energy first & use it afterwards.
DTSY566
Three Phase prepayment electronic watt-hour meter
conforms to the standards as follow: GB/T
17215-2002 (IEC61036-2000)
|
| |
| Technical parameters
|
class:
1.0 or 2.0
rated
voltage: 220V,
230V, 240V
rated
current: 5(30)A, 10(40)A, 15(60)A
power
loss: 0.5W
operating temperature:
-30℃-+60℃
|
|
Main features
|
■
Active
electric energy measuring and no calibration
needed within service life;
■
Prepayment
energy consuming system by use of IC card,
Protecting against tamper & fraud ;
■
One
meter with one IC card which adopts special
security measures, safe and reliable;
■
Warning
when residual energy is deficient to remind
users of purchasing energy in time, trip at
overload automatically and recording the
numbers of tripping;
■
Collecting
card backward reading user’s ID and the
accumulative energy;
■
Display
IC card advance purchase energy, remaining
energy, accumulated energy, preset load-limit,
alarming energy limit, maximum load, current
load;
■
Wide limit temperature range;
■
No deviation occurred under normal delivery
condition, calibration is unnecessary before
installation and random installation location.
■
DTSY566-S02 has two display: one is LED, the
other is cyclometer
|
| |

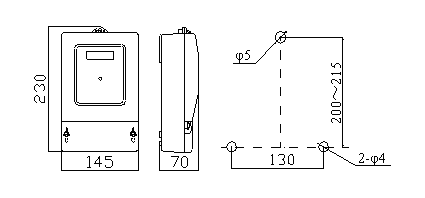

| Mounting Dimension
|
|
|
|
| | | |
|
| |
| |
|
|
| | |
| |
