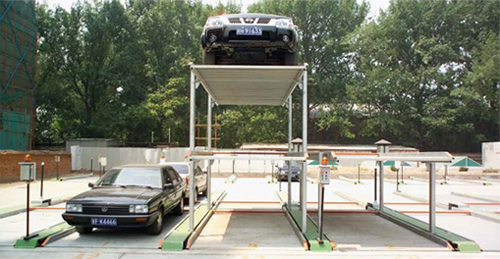

PJS2/3
two-layer/three-layer
Mini Mechanical Parking
System with pit
|
|
|
Characteristic:
For three-layer vertical
lifting parking system, it is simple for
operation and low in failure ratio;
It is driven by double
hydraulic cylinder or chains, so it is stable
and silent during operation and has low cost.
It is convenient for entry
and exit of the upper and lower cars and simple
for operation and maintenance.

|

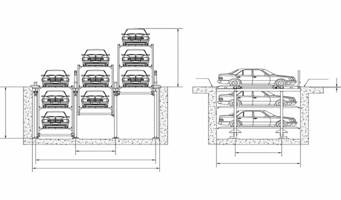

PJS3
Three-layer Mini Parking System

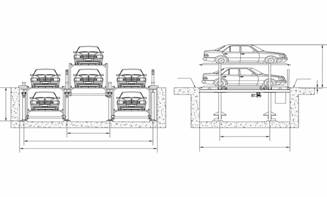

PJS2 Two-layer Mini Parking System
|
Item |
PJS3 |
PJS2 |
|
system space |
deep（mm） |
5300 |
5300 |
|
wide（mm） |
2500×N+450 |
2500×N+450 |
|
high（mm） |
Pit deep D≥3900 |
Pit deep D≥2200 |
|
vehicle specification |
long（mm） |
≤5000 |
≤5000 |
|
wide（mm） |
≤1850 |
≤1850 |
|
high（mm） |
≤1550 |
≤1550 |
|
weight（kg） |
≤1700 |
≤1700 |
|
building height（mm）（mm） |
≥Pit deep D |
≥Pit deep D |
|
speed |
lift |
4.5（m/min） |
4.5（m/min） |
|
noise |
|
≤63dB（A） |
≤63dB（A） |
|
garage structure |
steel structure |
H profiled bar 200×200
H profiled bar 125×125 |
H profiled bar 200×200
H profiled bar 125×125 |
|
car platform |
2.0mm wave board |
2.0mm wave board |
|
anti-corrosion mode |
surface paint spraying |
surface paint spraying |
|
power system |
power source |
3 phase 380V，50HZ，30A |
3 phase 380V，50HZ，30A |
|
lift |
3.7KW special motor |
2.2KW special motor |
|
electric system |
control mode |
PLC programmable logic controller |
PLC programmable logic controller |
|
operation mode |
key-pressing or IC card
control(optional) |
key-pressing or IC card
control(optional) |
|
travel switch |
XCKD2145P16C |
XCKD2145P16C |
The above is the technical specification of
standard PJS 2/3 Mini Parking System. Other
requirements can be met ,such as galvanized
surface of the parking system,etc.
|
