 Product Name： |
RDO Rolling Door Openers |
|
|
Product Classification： |
Rolling Door Openers-Rolling Door Openers
|
|
Product Model： |
RDO Series |
|
Production Information： |
|
|
Technical Specification
|
Model |
RDO-2D |
|
RDO-2D is used to control the roll up door, drive unit and mechanism system separate design The motor gear is also improved. The cover box effectively prevents the dust. LED courtesy light replace the traditional bulb one so the power consumption lower and the control board more reliable. 2DA has backup battery. |
|
Power input |
230Vac 50(60)Hz |
|
Working voltage |
24Vdc |
|
power consumption |
120W |
|
Continuous rotation time |
20 times for every hour (30kg load) |
|
Traveling noise |
<55db |
|
Min travel setting |
300mm |
|
Max. lifting force |
500N (~50kg) |
|
IP |
Ip20 |
|
Auto courtesy light close |
3 minutes |
|
Traveling speed |
16cm/s |
|
Max. lifting height |
5000mm |
|
Temperature range |
-20°C+55°C |
|
|
|
|
picture |
|
|
Packing dimension |
38*30*23cm |
|
Gross weight |
7.5kg |
|
Net weight |
6.5kg |
|
Model |
RDO-3D |
|
RDO-3D is for the wider and higher doors, the maximum door can be 6 meters wide and 3.5 meters high, or the same area door body. It is double drive and the door travel will be smooth. So the both side balance can be assured. RDO-3D is the biggest lifting force door operator at latest. |
|
Power input |
230Vac 50(60)Hz |
|
Working voltage |
24Vdc |
|
power consumption |
180W |
|
Continuous rotation time |
20 times for every hour (30kg load) |
|
Traveling noise |
<55db |
|
Min travel setting |
300mm |
|
Max. lifting force |
800N (~80kg) |
|
IP |
Ip20 |
|
Auto courtesy light close |
3 minutes |
|
Traveling speed |
16cm/s |
|
Max. lifting height |
5000mm |
|
Temperature range |
-20°C+55°C |
|
|
|
|

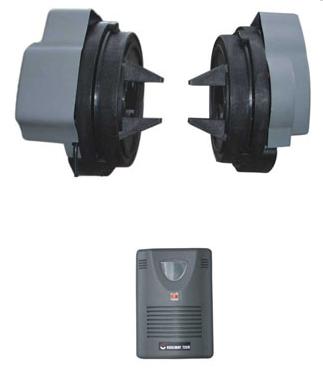

Picture |
|
|
Packing dimension |
58*30*28cm |
|
Gross weight |
12kg |
|
Net weight |
11kg |
|
Model |
RDO-5D |
|
RDO-5D is used to control the roll up door, drive unit and mechanism system all-in-one design. It is easy to install and the motor gear is also improved. The cover box effectively prevents the dust. LED courtesy light replace the traditional bulb one so the power consumption lower and the control board more reliable. Specially designed detachable fork is very convenience. |
|
Power input |
230Vac 50(60)Hz |
|
Working voltage |
24Vdc |
|
power consumption |
120W |
|
Continuous rotation time |
20 times for every hour (30kg load) |
|
Traveling noise |
<55db |
|
Min travel setting |
300mm |
|
Max. lifting force |
500N (~50kg) |
|
IP |
Ip20 |
|
Auto courtesy light close |
3 minutes |
|
Traveling speed |
16cm/s |
|
Max. lifting height |
5000mm |
|
Temperature range |
-20°C+55°C |
|

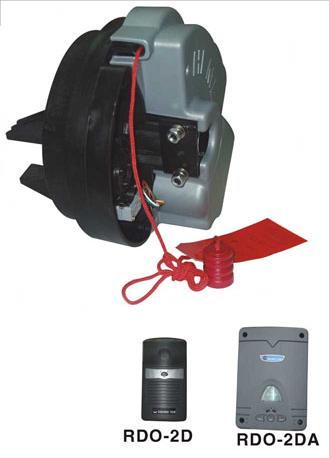

Picture |
|
|
Packing dimension |
38*30*23cm |
|
Gross weight |
7.5kg |
|
Net weight |
6.5kg | |
|
|
|
|
