home - >> products

Product Name：

CAN Sliding Gate Operator

Product Classification：

Sliding Gate Operators-CAN Sliding Gate Operators

Product Model：

CAN

Production Information：

Mechanical limit switch

CAN-I

Magnetic limit switch

CAN-II

◆ Technical specifications

Model:

CAN(AC)

CAN(DC)

Motor power:

AC220V 250W

DC24V 80W

Frequency:

50Hz

-------

W.T(kg)

14kg

13.5kg

Motor rotational speed:

1400 r/min

1200 r/min

Output rotational speed:

46.7r/min

40r/min

Gate max weight:

800kg

500kg

Gear Box material:

Aluminum alloy

Aluminum alloy

◆ Function Introduction

Built-in control board.

Terminals for Push button,

Photocell, Flash lamp.

AC-PCB

Built-in control board.

Terminals for Push button,

Photocell, Flash lamp.

DC-PCB

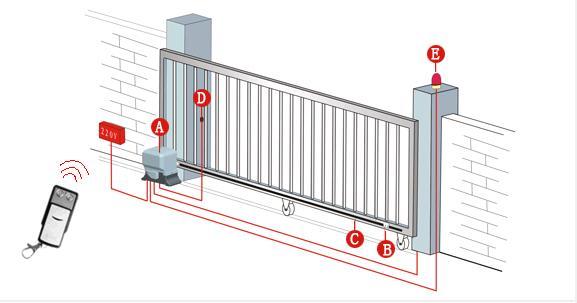

◆ Installation Drawing

A: CAN

B:Limit stopper

C：Rack

D：Photocell(Optional)

E：Alarm lamp(Optional)
