Mechanical limit switch |
(IZ-I) |
|
|
Magnetic limit switch |
(IZ-II) |
|
◆ Technical specifications |
Motor power: |
AC220V 370W |
AC220V 450W |
Frequency: |
50(60)Hz |
50(60)Hz |
W.T(kg) |
16kg |
16kg |
Motor rotational speed: |
1400 r/min |
1400 r/min |
Output rotational speed: |
46.7r/min |
46.7r/min |
Gate max weight: |
1000kg |
1500kg |
Reduce ratio: |
30:1 |
30:1 |
Gear Box material: |
Aluminum alloy |
Aluminum alloy |
|
◆ Function Introduction |
|
AC-PCB |
◎ Built-in control board. |
◎ Terminals for Push button, Photocell, Flash lamp. |
◎ Auto-closing is available, time delay is adjustable. |
◎ Aluminum alloy Gear Box. |
|
|

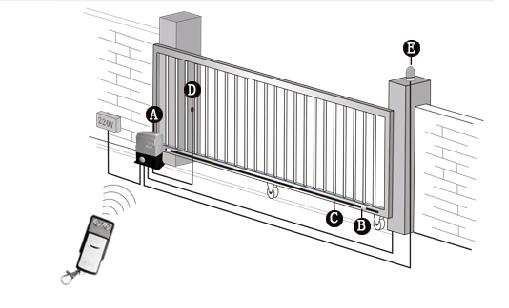

◆ Installation Drawing |
|
A: IZ |
B: Limit stopper |
C:Rack |
D:Photocell(Optional) |
E:Alarm lamp(Optional) |
|
|
