home - >> products

Product Name：

Cell Monitor

Product Classification：

DC Power Supply-WXJ-15/16 Battery Cell Monitor

Product Model：

WXJ-15/16

Production Information：

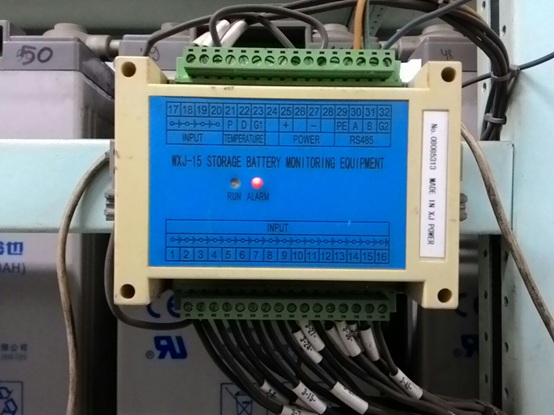

WXJ-15 Battery Cell Patrol Inspector

The WXJ-15 battery cell patrol inspector is used to measure the concrete cell voltage(2V or 12V rating) of a battery. It is can be used independently or combined with WZCK type of DC collective monitor or WXJ16 battery cell monitor(WXJ-16 Battery Monitoring Device)

WXJ-16 Battery Cell Monitor

WXJ-16 battery monitoring device is designed according to the idea of disperse measuring & centralized control, and manages WXJ-15 battery measuring units. It has friendly man-machine interface, deals with the data sent by WXJ-15 and executes the functions of warning, display, etc. It is helpful to detect the abnormal cell, record the voltage value of every cell under different running state, assure the voltage equilibrium of the whole battery group, improve the level of automatization. The device is fit for all voltage class transformer substation, heat engine plant or water power plant, can interface with automatic monitoring and control system and meet the unmanned and less-manned watch requirements to DC power system for electric power system.

WXJ-10 Micro-Processor Based Battery Monitor

WXJ-10 series micro-processor based battery monitor (herein after called the monitor) is manufactured by our company on the experience of many years of manufacturing DC system equipments.

The monitor can be used for each kind of battery for data measuring online, data processing, fault alarm and record printing. The main reference is the end voltage of the battery group and the cell voltage. Operation at the parameters and condition preset by user will increase the accuracy of measuring battery voltage, find the abnormal battery in time, record each cell voltage in real time in different working conditions, guarantee the balance of the whole group of battery voltage and increase the battery maintenance level and automatic level.

The monitor can be used in substations, power plants and hydropower stations with various voltage level, and also it can be connected with automatic supervision and detection system to meet the requirement of unattendant operation in substations.
